uPVC Lift & Slide Patio Door
Large sliding door allow you to eliminate all restrictions, save space and freely shape the space in your home. Rooms full of light, closeness of nature, lack of barriers and optimal use of living space are new perspectives in interior design.
__________________________________________________________________________________________________
German Engineering Lift and Slide Patio Doors
Lift & Slide patio doors are a type of sliding door system that offers several advantages over traditional sliding doors. They are designed to provide a larger opening than traditional sliding doors, allowing for more natural light and improved ventilation.
One of the key features of Lift & Slide patio doors is their innovative hardware system. The doors are equipped with a lift and slide mechanism that allows the door panels to be lifted slightly off the track, making them easy to move and slide smoothly. When the door is in the closed position, the lift and slide mechanism ensures a tight seal, providing excellent energy efficiency and security.
Another advantage of Lift & Slide patio doors is their durability. They are made from high-quality materials, such as uPVC, aluminum, and timber, that are designed to withstand the elements and resist wear and tear. Additionally, the doors can be customized to fit any size or shape, making them a versatile option for any home.
Lift & Slide patio doors also offer a modern and stylish look that can enhance the appearance of any home. They come in a range of finishes and styles, allowing homeowners to choose a design that best matches their taste and decor.
Overall, Lift & Slide patio doors offer many advantages over traditional sliding doors, including improved functionality, energy efficiency, and durability, making them an excellent choice for any homeowner looking to upgrade their patio doors.
HARMONY OF SPACE
Large sliding door allow you to eliminate all restrictions, save space and freely shape the space in your home. Rooms full of light, closeness of nature, lack of barriers and optimal use of living space are new perspectives in interior design.
Lift and Slide SLIDING DOORS – FUNCTIONALITY AND EASE OF USE
An ideal solution for those who want a comfortable combination of the interior and patio terrace and the panoramic view achieved thanks to a large glazed area is the use of the lift and slide doors. Special fittings mechanisms allow you to move huge wings using minimum force. Turning the big handle down, from the closed position, raises the wing by a few millimeters, releasing the pressure of the gaskets and the enabling you to move the wings freely.
What dimensions can the sliding patio doors have?
An unquestionable advantage of this type of patio doors are the possible dimensions of its construction. The width of the wing can be from 1,250 mm to 3,000 mm wide and up to 2,700 mm high in white colour, which allows you to create even a more than six-meter glazing.

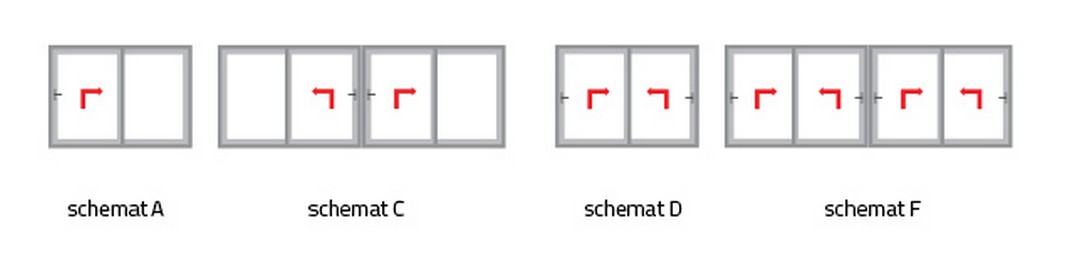

What are the schema
for opening the sliding door?
Lift and slide doors, can be found in at least several different versions and arrangements of the wings and non-opening parts. The variety of constructions is one of the undeniable advantages of this solution. The most popular sliding door diagrams are 2-sectioned variants – with one or both movable wings – or 4-sectioned – with the two middle or all moving wings.
Are the lift and slide doors thermally efficient ?
In this solution the fitting is realized by means of integrated gaskets, which guarantees high tightness. Appropriate tightness of the space between the moving wings of the sliding door when they remain in the closed position is ensured by a special arrangement of overlapping taps equipped with a clinging gasket system.
The Lift and Slide door uses specialised window fittings, which guarantee that the wings move freely and without any resistance against the non-moving parts of the structure.
Are the Lift and Slide doors warm?

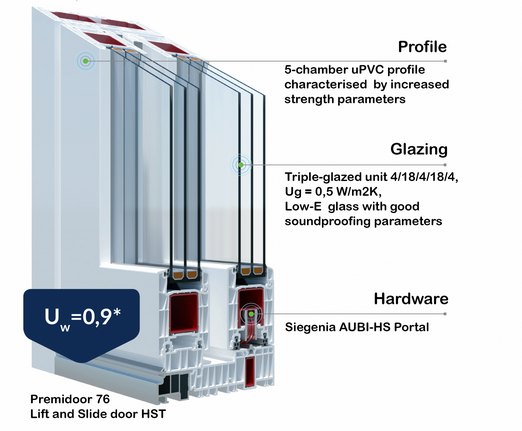

Changes in the construction of sections have allowed for a significant improvement in thermal permeability of profiles, which depending on the chosen option allows to obtain an average value of the heat transfer coefficient Uf = from 1.5 W (m2 * K) in the Basic version, through Uf = 1.3 W (m2 * K) in the Standard version up to Uf = 1.1 W (m2 * K) in the Premium version. Despite their huge size, HST doors remain an effective barrier against the escape of heat.
The table below presents the values of Uw heat transfer coefficient for example HST doors (SCHEMA A) with dimensions 4000 x 2300 mm glazed with double-chamber glass with a heat transfer coefficient for the middle part of the pane Ug = 0.5 W (m2 * K) and Ug = 0, 7W (m2 * K) and the values of linear heat transfer coefficient of thermal bridge at the interface between the pane and the frame Ψ = 0.04 W (m2 * K)
